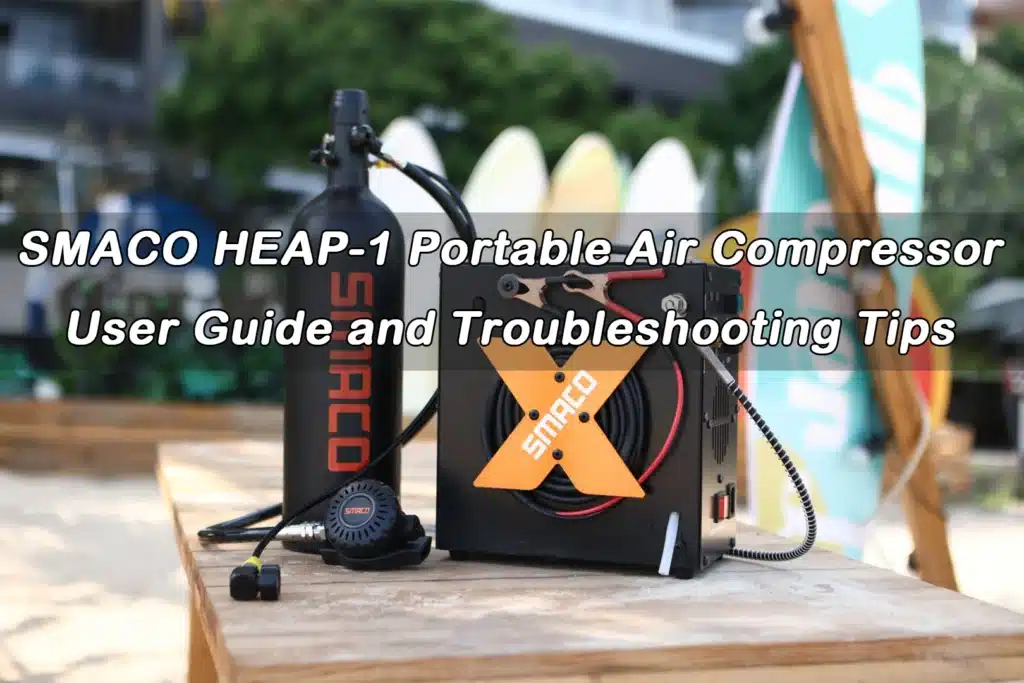

SMACO HEAP-1 Air Compressor User Guide & Troubleshooting Tips

Posted on by Thea
28
Nov

This article provides a detailed overview of the HEAP-1, including key features, technical specifications, step-by-step refilling instructions, safety considerations, and troubleshooting tips, helping you safely and efficiently complete mini scuba tank refills at home or outdoors.

Key Advantages and Specifications of the SMACO HEAP-1

The HEAP-1 excels in structure, cooling, and filtration, providing a stable high-pressure air supply for home, vehicle, camping, and boat use. It is currently one of the most popular portable air compressors for mini scuba tank refills.

Product Applications

  • Compatible with SMACO mini scuba tanks (0.5L / 1L / 2L)
  • Suitable for use with air rifles and other applications

Supports home, outdoor, vehicle, and boat refilling

Technical Specifications

  • Dimensions: 24cm × 16cm × 29cm
  • Weight: 8.0 kg
  • Maximum Current: 28A
  • Maximum Working Pressure: 4500 psi (30 MPa / 300 bar)

Dual Power Supply

  • AC 110V–220V for home use
  • DC 12V for vehicle use

Supports mobile outdoor refilling

Refill Efficiency

Air Output: Approx. 11 L/min

Estimated inflation times:

  • 0.5L tank: ~ 11 minutes
  • 1L tank: ~ 26 minutes
  • 2L tank: ~ 46 minutes

Tip: For longevity, continuous operation should not exceed 25 minutes; allow 10 minutes to cool before continuing.

Advanced Filtration and Cooling System

  • Upgraded oil-water separator
  • Improved cooling fan, with an additional rear exhaust fan

More stable, more safer.

Refill Steps and Video Guidance

The following steps summarize the complete refill process for the HEAP-1. Please follow the sequence carefully.

Step 1: Pre-Use Checks

Before the operation, ensure that:

The proper power source is selected (AC/DC)

The compressor is placed on a stable surface outdoors; avoid high-temperature environments

The oil-water separator, high-pressure hose, and power cable are intact

All fittings are free of damage or looseness

Step 2: Assemble

Connect the components in sequence:
High-pressure hose → Oil-water separator → Mini scuba tank

Inspect hoses and all fittings for damage

Secure all connections to prevent leaks

Gently pull the hose to confirm stability

Step 3: Set Parameters and Start

Adjust the top voltage knob according to your local power supply

Set the target pressure according to your tank (usually 200–300 bar)

Turn on the side red switch according to the selected power source (AC/DC)

Tighten the pressure release valve

Press the main switch to start the compressor

The compressor will automatically stop when the target pressure is reached—no manual supervision required

Step 4: Monitor the Refilling Process

Watch the pressure gauge for unusual fluctuations

If sudden noises occur, stop immediately and check

Pause if the unit overheats

Avoid prolonged direct sunlight exposure

Step 5: Completing the Refill

Turn off the switch and open the pressure release valve to release internal pressure

Disconnect the tank from the compressor

Wait 2–3 minutes for the compressor to cool

Open the drain at the bottom of the oil-water separator to empty any residual water

Turn off the side switch

Disconnect the power and store the unit

You now have a safe and fully refilled mini scuba tank.

Safety and Maintenance Guidelines

Keep the Filter Clean

  • Drain after each use
  • Replace the filter element periodically for long-term use
  • Ensure the air is dry and oil-free, meeting breathing air standards

Control Continuous Operation

  • Do not exceed 25 minutes of continuous use
  • Cooling intervals should be at least 10 minutes

Proper Storage

  • Store in a cool, dry place
  • Avoid humidity and direct sunlight
  • Release pressure and disconnect power when not in use

Regular Inspections

  • Check the pressure gauge and safety valve
  • Inspect hoses and fittings for wear
  • Inspect power cables for damage
  • Check oil-water separator seals
  • Proper maintenance extends compressor lifespan and ensures stable refilling

FAQ

Q1: Why is refilling slower than before?

  • Possible causes: clogged filter, high temperature, unstable voltage, minor leak at fittings

Q2: Why does the compressor stop automatically earlier than expected?

  • Possible causes: low target pressure setting, pressure gauge deviation, early safety valve activation

Q3: Why is there water in the drain?

  • Condensation is normal due to compressed air and indicates the filter is functioning properly

Q4: Can I refill two tanks consecutively?

  • Yes, but follow the guideline: 25 minutes of operation + 10 minutes of cooling



The SMACO HEAP-1 is a portable, efficient air compressor with dual power, auto shut-off, and strong cooling and filtration. It makes mini scuba tank refills easy anywhere and provides a safe, steady air supply for diving, fishing, and underwater tasks.
Next Step: Visit the product page for specs, filters, accessories, and the user manual.
